The below schematics are for Revision C of the Troverlo Universal Tag. This information is meant to be used by development teams as a baseline for creating their own tags leveraging the Troverlo technology.
Revision C Schematics:

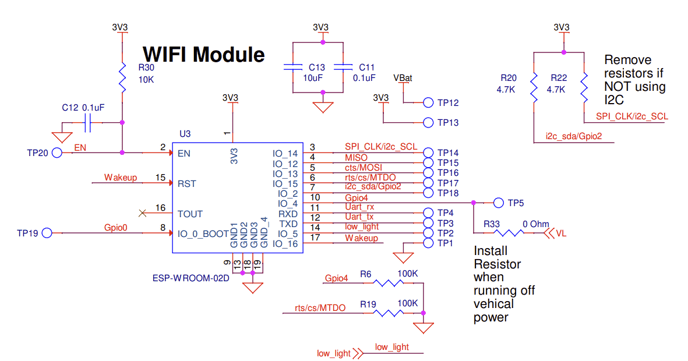

/1_troverlo-universal-tag-schematic.png?width=688&height=361&name=1_troverlo-universal-tag-schematic.png)

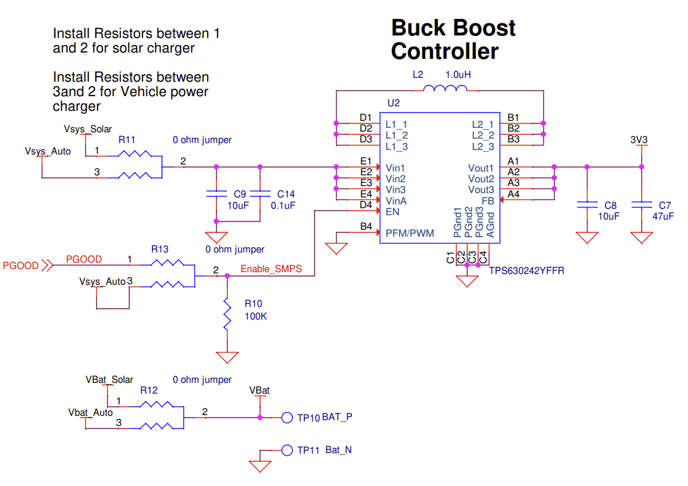

/2_troverlo-universal-tag-schematic.png?width=688&height=486&name=2_troverlo-universal-tag-schematic.png)

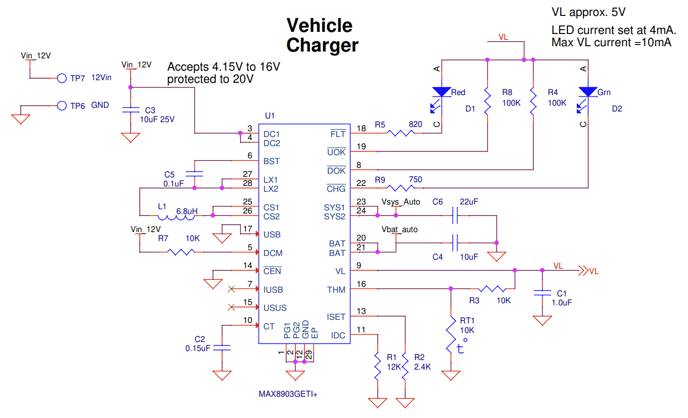

/3_troverlo-universal-tag-schematic.png?width=688&height=418&name=3_troverlo-universal-tag-schematic.png)

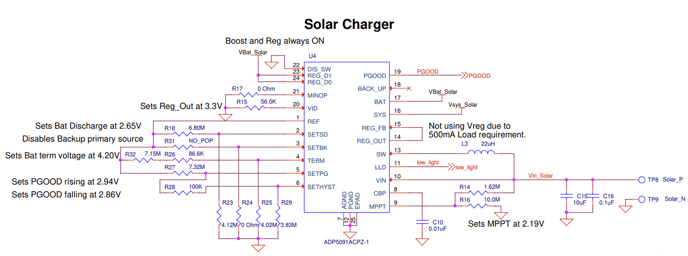

/4_troverlo-universal-tag-schematic.png?width=688&height=257&name=4_troverlo-universal-tag-schematic.png)
