Troverlo Universal Tag Physical Board Layout (single-side Revision C board)

This article provides an overview of the Troverlo Tag board.

The below physical board layout is for Revision C of the Troverlo Universal Tag. This information is meant to be used by development teams as a baseline for creating their own tags leveraging the Troverlo technology.

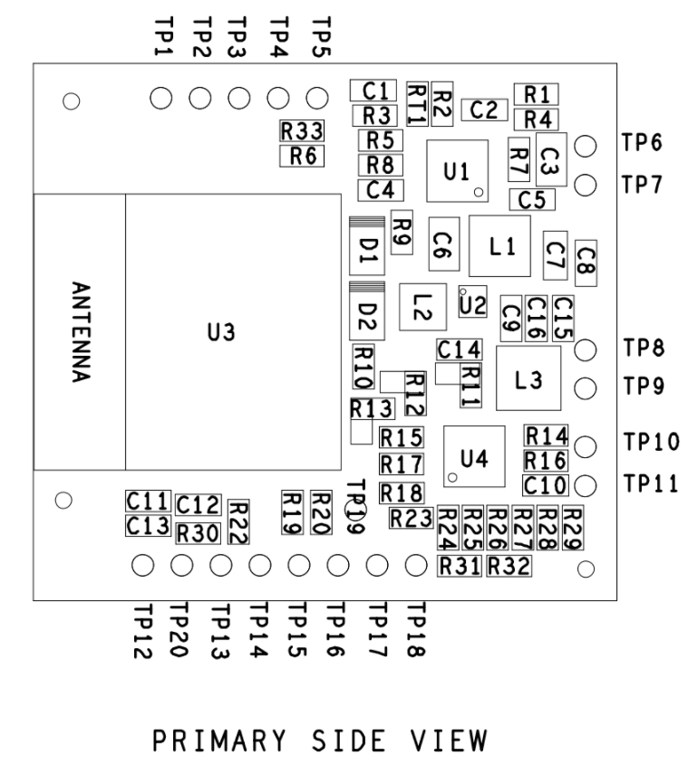

Revision C Physical Board Layout (single-side board)

1_troverlo-universal-tag-physical-board-layout
